Electrical Characteristics

Power Supply: Battery (Rechargeable)

Operating Voltage Range: DC 3.4V - 4.5V

Operating Current: 4V/Average 55mA

Standby Current: 4V/Average 5mA

Sleep Current: 4V/Average 3mA

Built-in Battery Capacity: 5000mAh (3.7V Polymer)

Environmental Characteristics

Operating Temperature Range: -20°C - 75°C

Storage Temperature Range: -30°C - 80°C

Operating Humidity Range: 10%-85% RH (non-condensing)

Communication Characteristics

Communication Module Brand/Chip Model: A7670E/A7670SA

Communication Frequency Band: See description at the end of this article

SIM Card: Standard SIM Card

Communication Antenna: Built-in

GPS/BD Positioning Characteristics

Positioning Module Brand/Chip Model: Zhongkewei AT6558R

Positioning Method: Beidou + GPS

Cold Start Time: Average 32 seconds

Hot Start Time: Average 1 second

Sensitivity (Tracking): -162 dBm

Location Antenna: Internal

External Interface

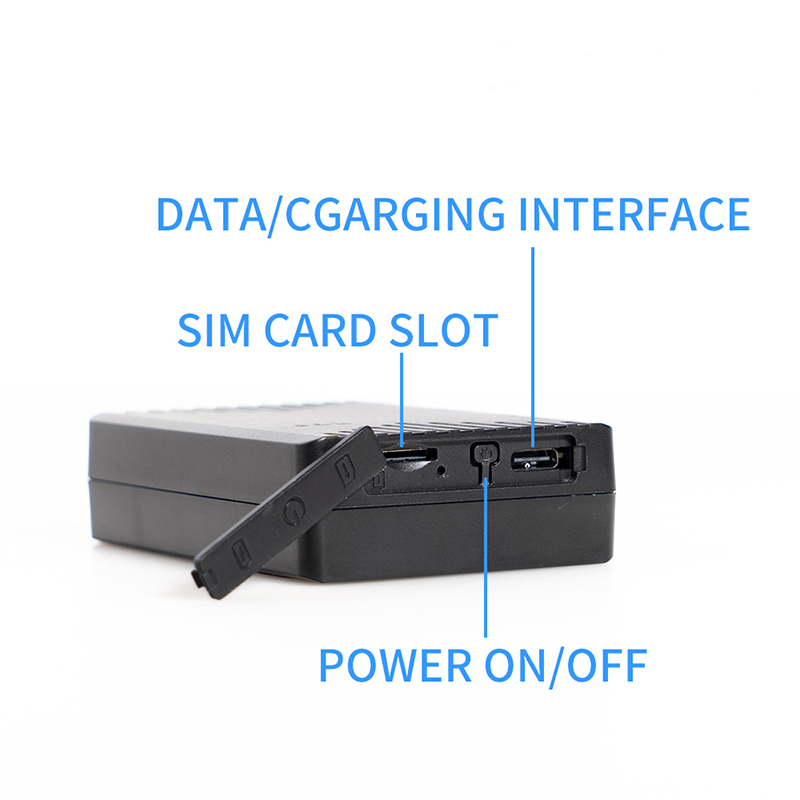

USB: 5V Charging Port

Specifications

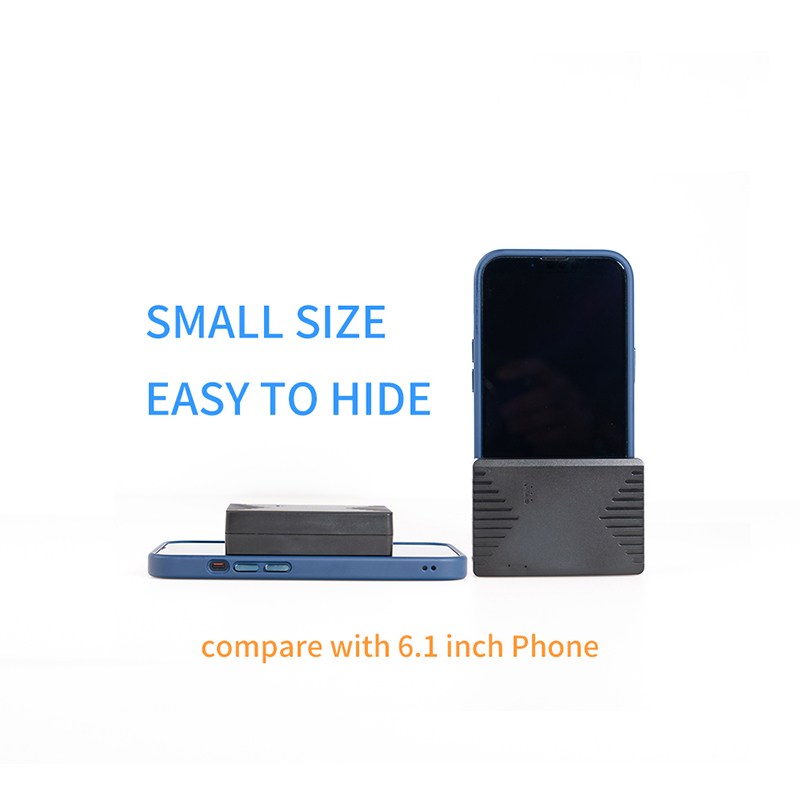

Device Dimensions: 79mm * 54mm * 21mm

Casing Material: ABS Plastic

Device Weight: 132g

Empower your fleet with Soin CW01-CSA In-Vehicle GPS Tracker. Designed for accuracy, stability, and long battery life, it ensures seamless real-time vehicle monitoring. Contact us now for OEM

or bulk orders.High-Precision In-Vehicle Tracking SolutionThe CW01-CSA in-vehicle GPS tracker solution delivers unmatched accuracy and reliability. With support for GPS, Beidou, AGPS, and

LBS positioning, it achieves a positioning precision of up to5 meters, ensuring vehicles are always under efficient and precise monitoring. It is ideal for fleet management, logistics, and

automotive security applications.
