Electrical Characteristics

Power Supply: Battery

Operating Voltage Range: DC 9V - 95V

Operating Current: 12V/35mA

Sleep Current: 12V/5mAInternal Battery Capacity: 60 mAh (3.7V polymer battery) (Optional)

Environmental Characteristics

perating Temperature Range: -20°C - 75°C

Storage Temperature Range: -30°C - 80°C

Operating Humidity Range: 10%-85% RH (non-condensing)

Communication Characteristics

Communication Module Brand/Chip Model: A7670 E/SA

Communication Frequency Band: See description at the end of this article

SIM Card:Micro SIM Card

Communication Antenna: Built-in

Network Speed: CAT 1

GPS/BD Positioning Characteristics

Positioning Module Brand/Chip Model: AT6558R

Positioning Method: Beidou + GPS

Cold Start Time: Average 32 seconds

Hot Start Time: Average 1 second

Sensitivity (Tracking): -162 dBm

Location Antenna: Built-in

External Interface

Oil/Power Cutoff: Can be connected to an external relay

Appearance

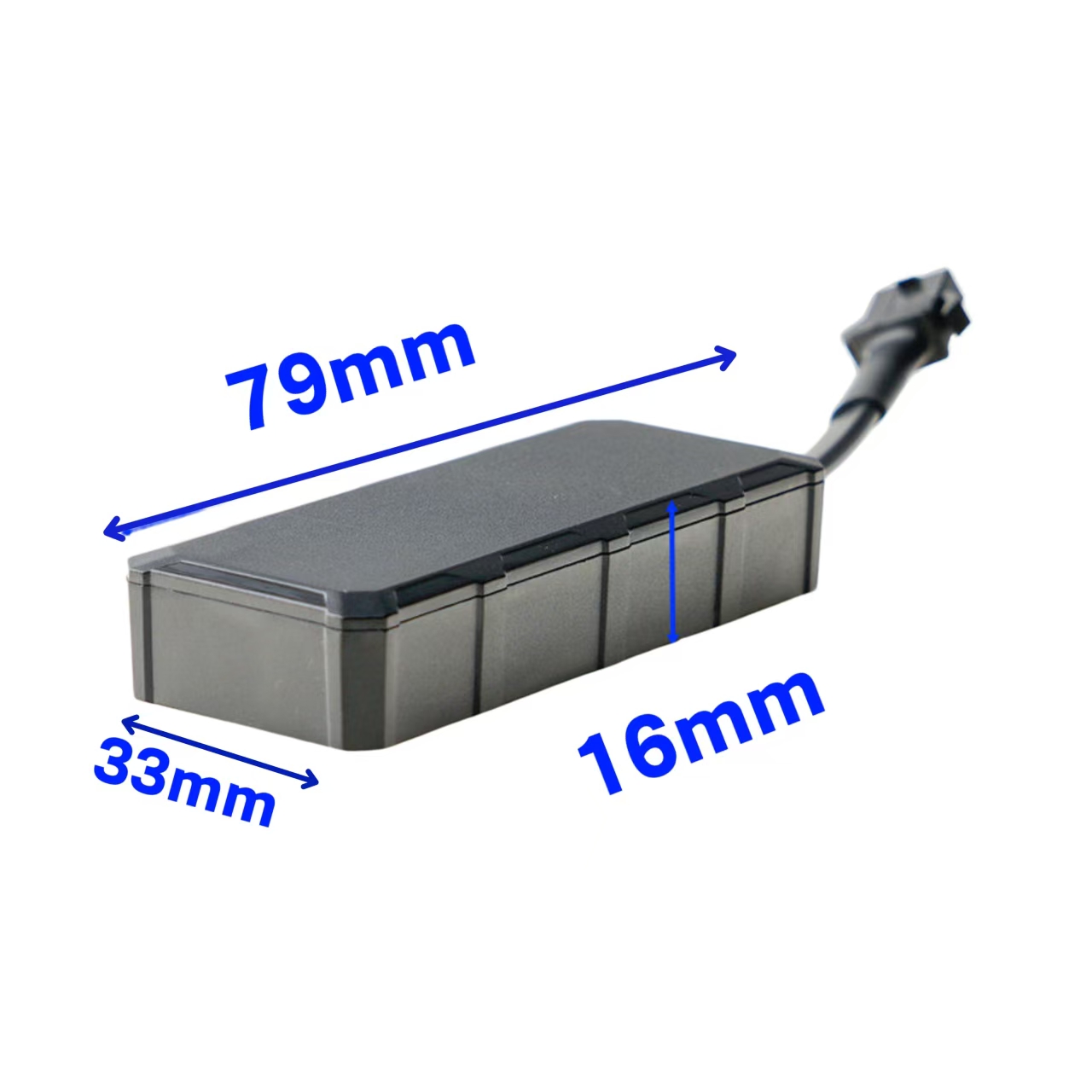

Dimensions: 79mm x 33mm x 16mm

Casing Material: ABS Plastic

Main Unit Weight: 40g

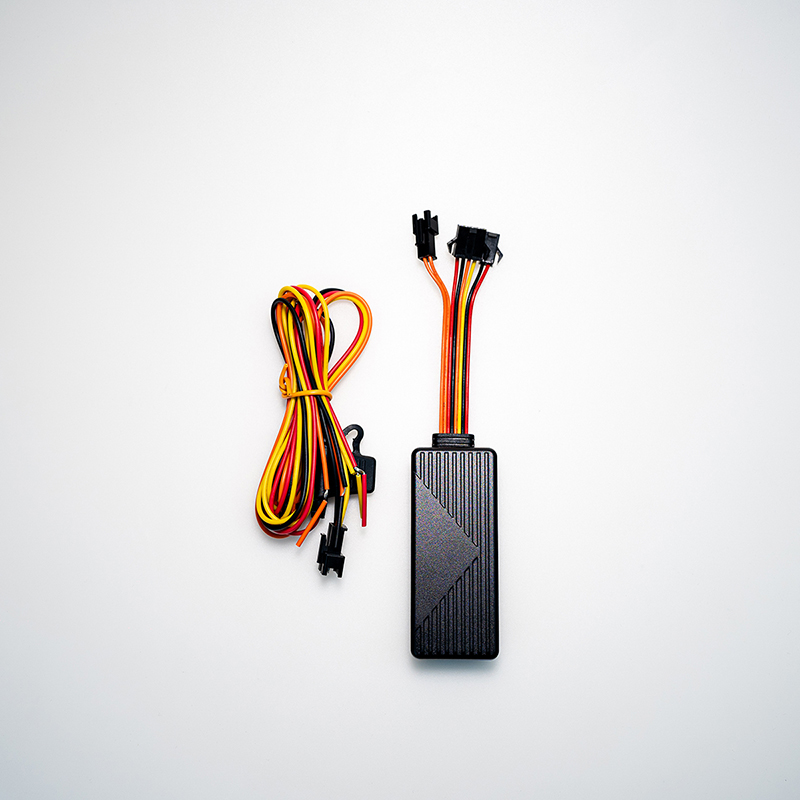

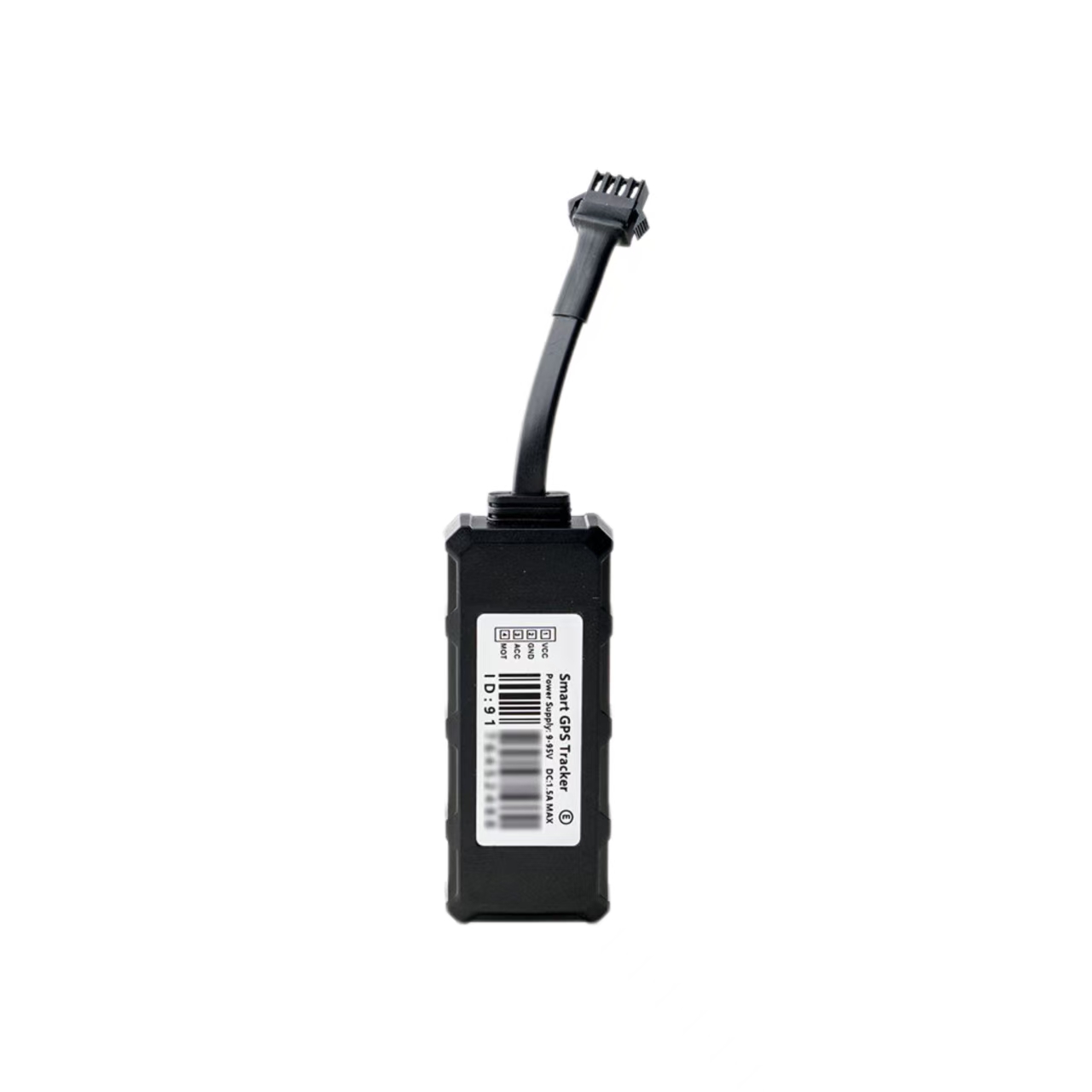

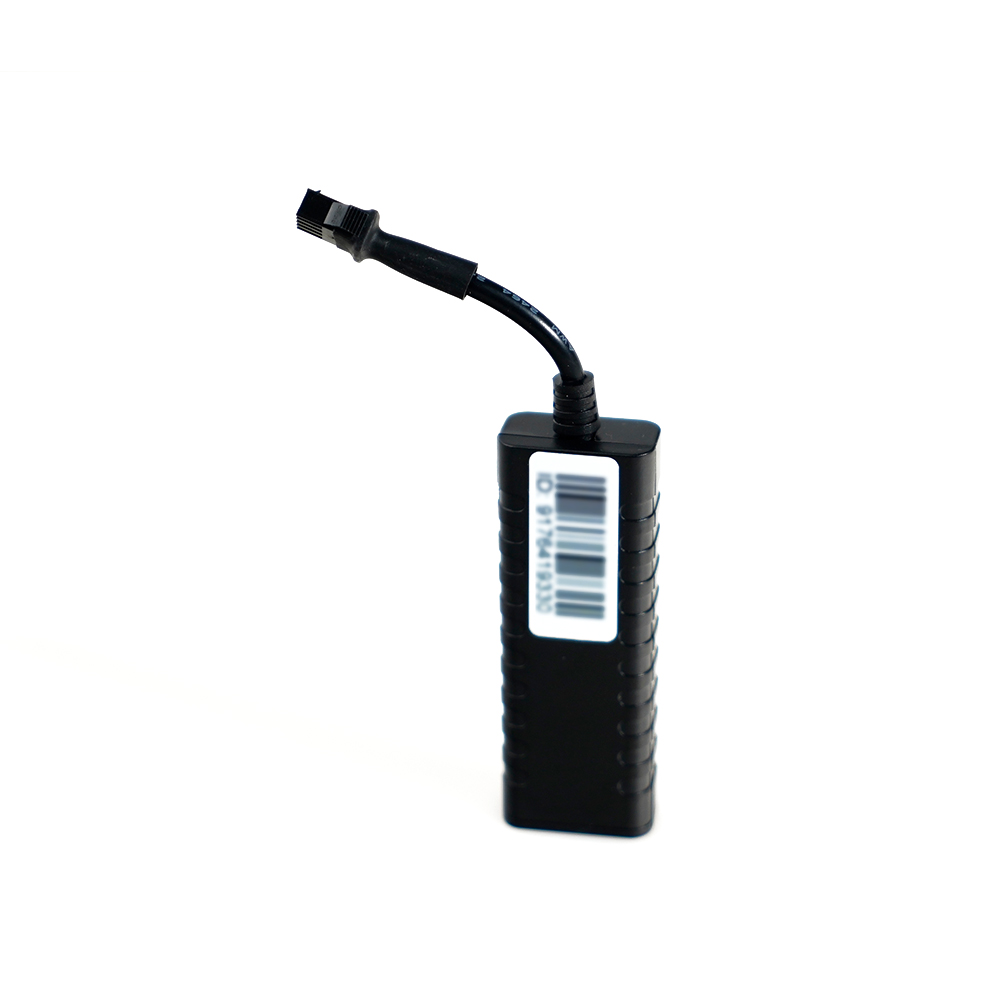

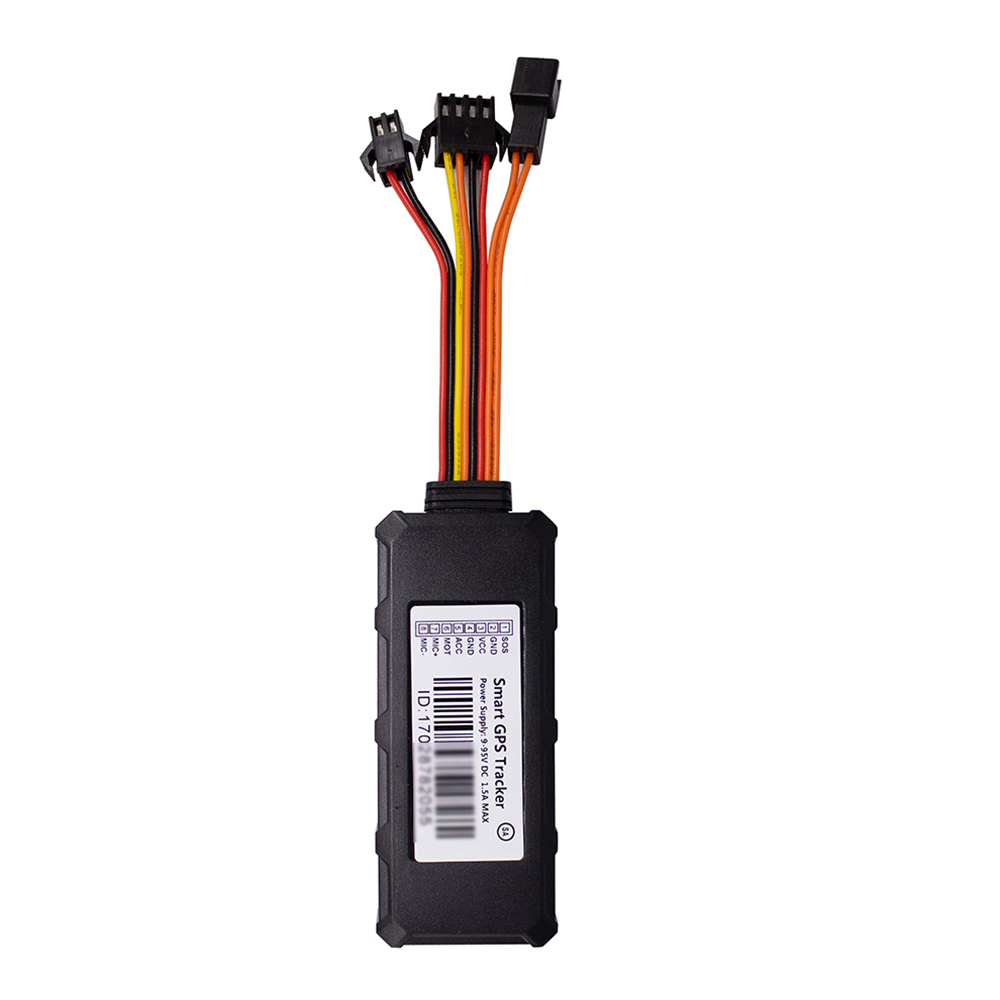

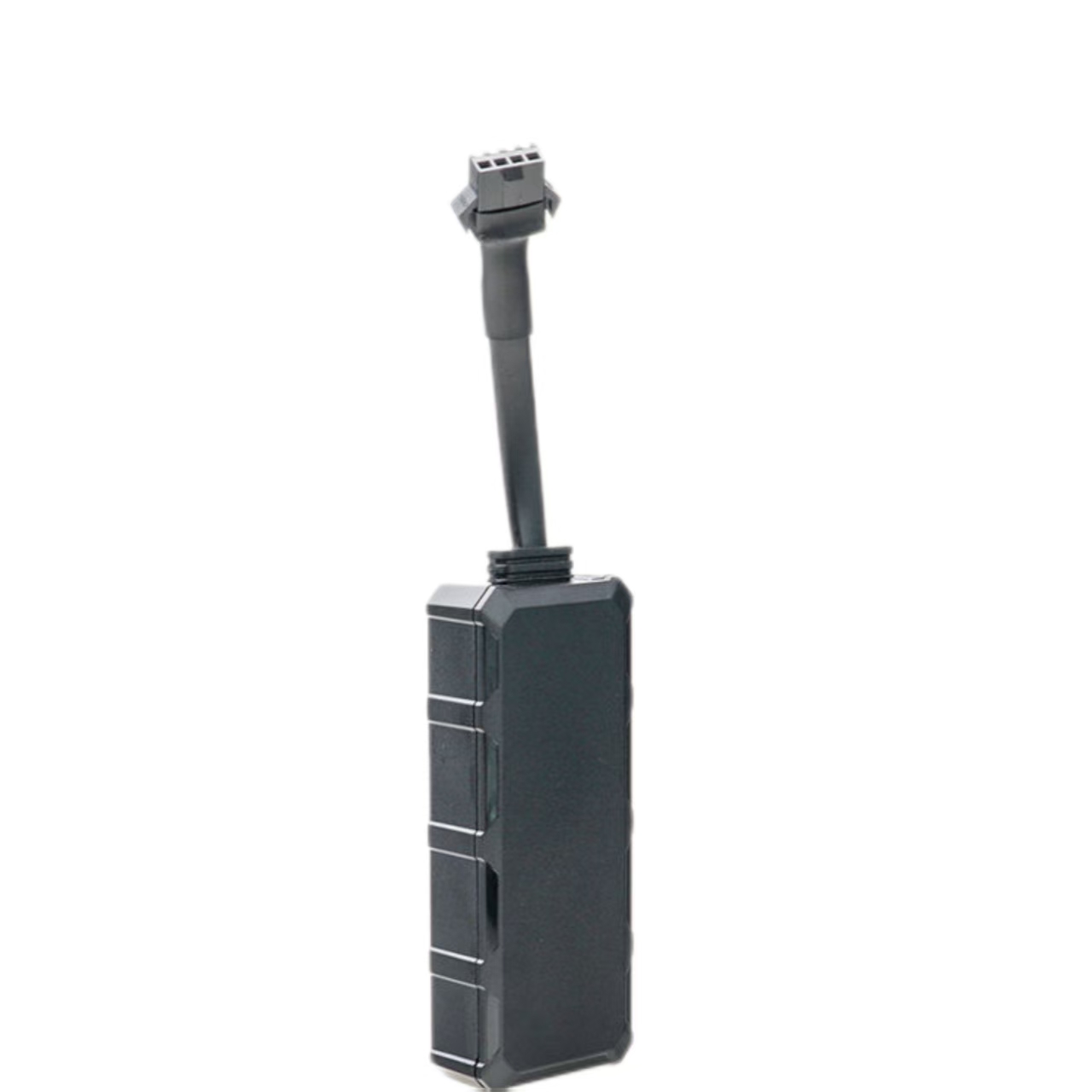

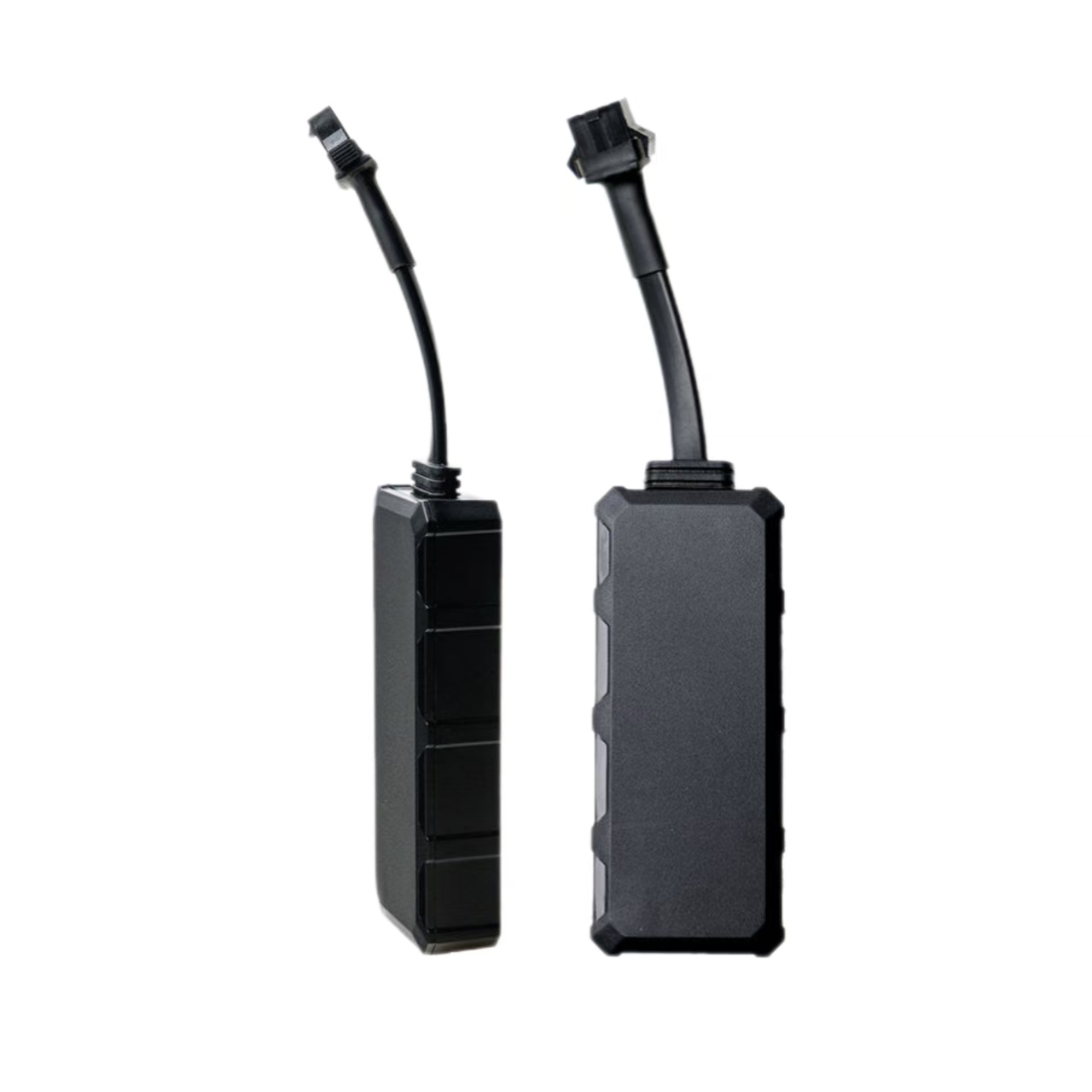

The SOINGPS 4-Pin GPS Tracker for Fleets delivers professional-grade vehicle tracking with 4G full network access and multiple positioning systems, including GPS, Beidou, AGPS, and LBS. Built for fleet operations, it ensures stable performance with a wide voltage input of 9V–95V, making it compatible with various vehicle types. Ideal for logistics, car rental, and fleet businesses seeking safety, efficiency, and intelligent management, the SOINGPS 4-Pin Tracker represents the next level of precision tracking. Contact us today to customize your fleet tracking solution and enhance operational visibility.
