Electrical Characteristics

Power Supply: Battery

Operating Voltage Range: DC 9V - 95V

Operating Current: 12V/35mA

Sleep Current: 12V/5mA

Internal Battery Capacity: 60 mAh (3.7V polymer battery) (Optional)

Environmental Characteristics

Operating Temperature Range: -20°C - 75°C

Storage Temperature Range: -30°C - 80°C

Operating Humidity Range: 10%-85% RH (non-condensing)

Communication Characteristics

Communication Module Brand/Chip Model: A7670 E/SA

Communication Frequency Band: See description at the end of this article

SIM Card: Micro SIM Card

Communication Antenna: Built-in

Network Speed: CAT 1

GPS/BD Positioning Characteristics

Positioning Module Brand/Chip Model: AT6558R

Positioning Method: Beidou + GPS

Cold Start Time: Average 32 seconds

Hot Start Time: Average 1 second

Sensitivity (Tracking): -162 dBm

Location Antenna: Built-in

External Interface

Oil/Power Cutoff: Can be connected to an external relay

ACC Detection: One ACC detection port

SOS Button: Can connect an external SOS button

Appearance

Dimensions: 79mm x 33mm x 16mm

Casing Material: ABS Plastic

Main Unit Weight: 40g

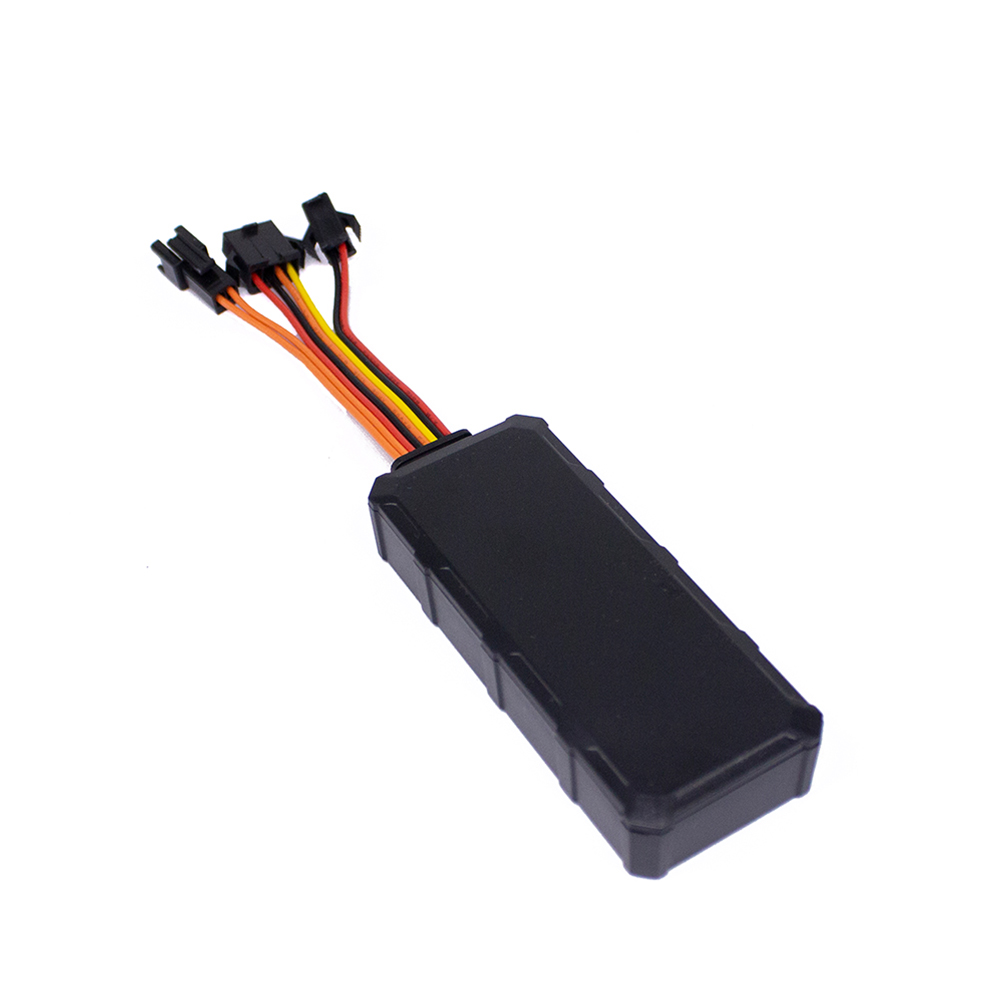

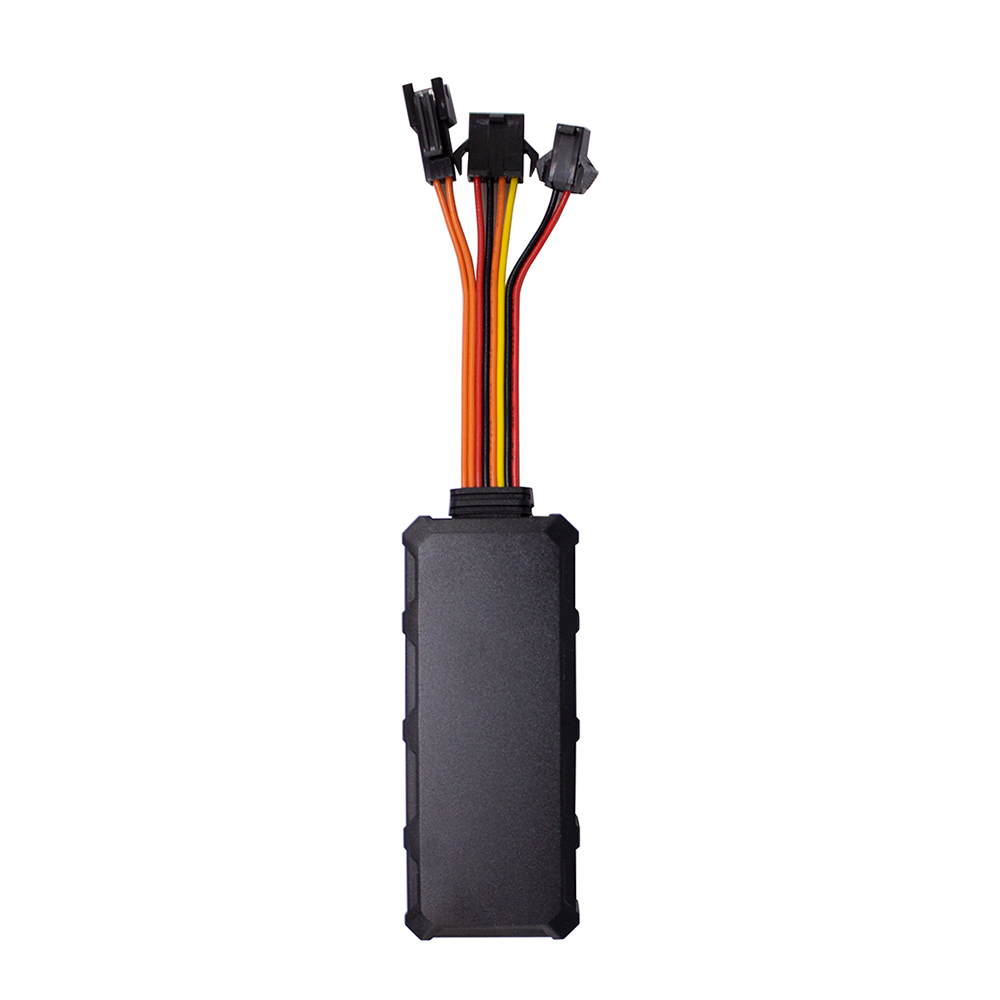

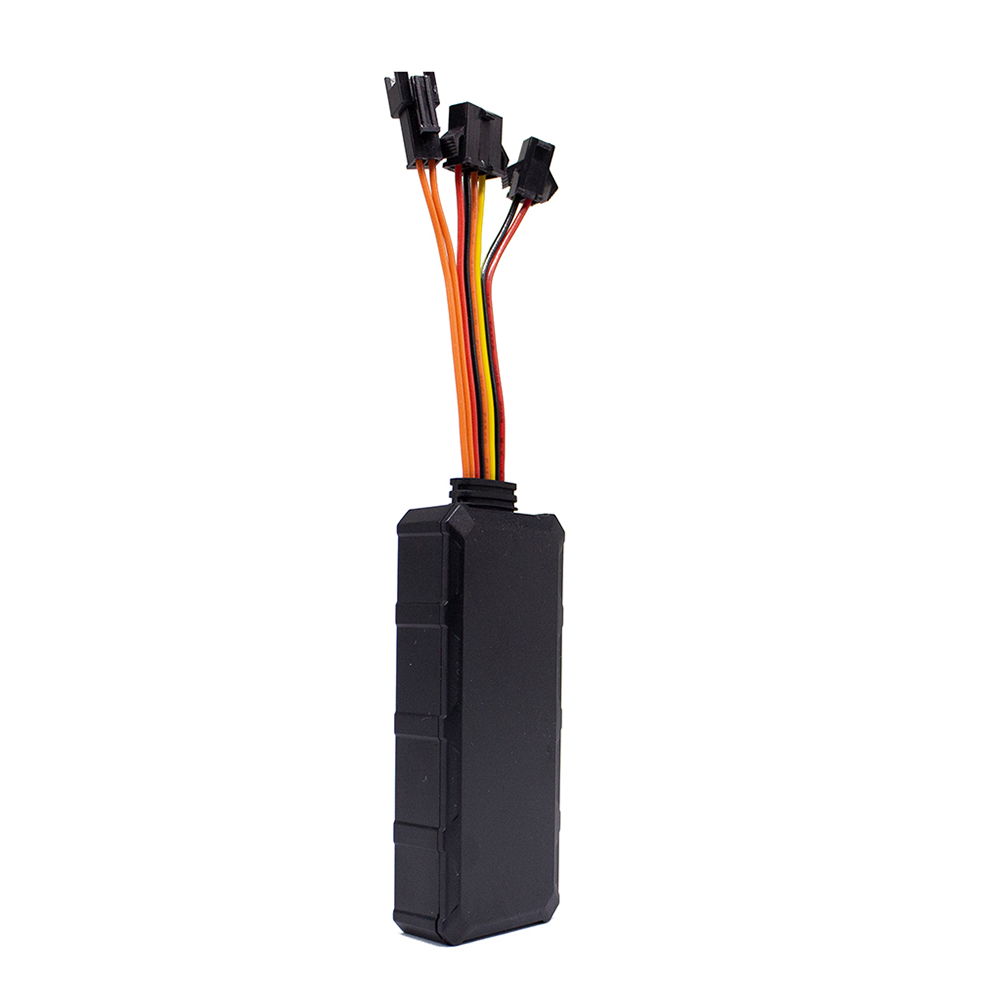

SOINGPS 8-pin GPS locator delivers reliable and precise vehicle tracking with 4G full network support and GPS/Beidou dual-mode positioning. Designed for commercial and fleet use, it offers smart features like ACC detection, remote fuel and power cut-off, and real-time alarms for vibration, overspeed, and low voltage. With a wide voltage range of 9V–95V and a durable ABS housing, it ensures stable operation under harsh conditions. Contact us today for OEM/ODM customization and bulk orders to enhance your fleet safety and management efficiency.
