Electrical Characteristics

Power Supply: Battery 4G GPS tracker manufacturer

Operating Voltage Range: DC 9V - 95V

Operating Current: 12V/35mA

Sleep Current: 12V/5mA

Internal Battery Capacity: 60 mAh (3.7V polymer battery, Optional)

Environmental Characteristics

Operating Temperature Range: -20°C - 75°C

Storage Temperature Range: -30°C - 80°C

Operating Humidity Range: 10%-85% RH (non-condensing)

Communication Characteristics

Communication Module Brand/Chip Model: A7670 E/SA

Communication Frequency Band: See description at the end of this article

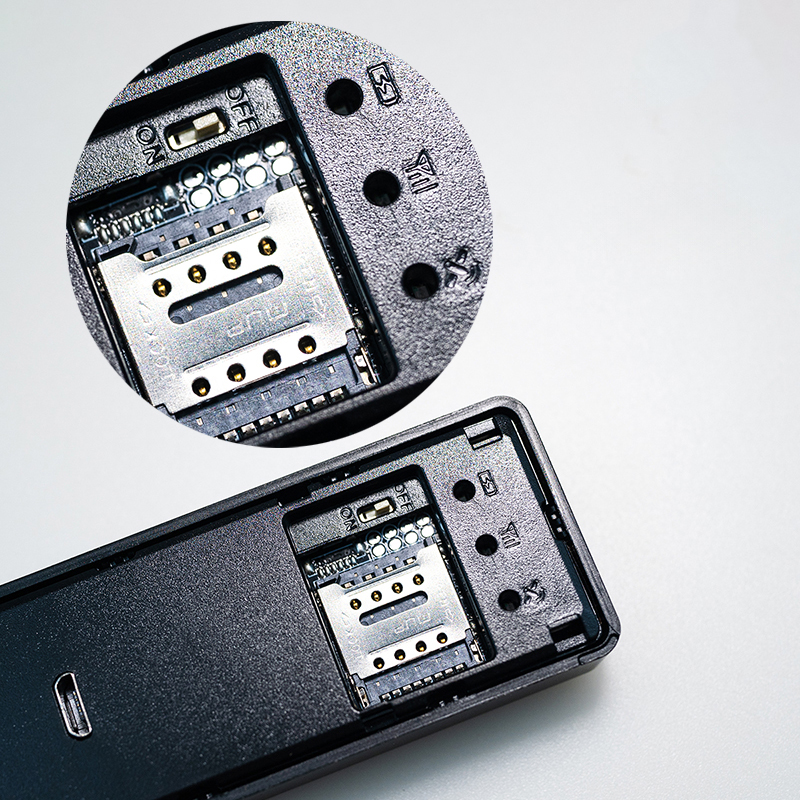

SIM Card: Micro SIM Card

Communication Antenna: Built-in

Network Speed: CAT 1

GPS/BD Positioning Characteristics

Positioning Module Brand/Chip Model: AT6558R

Positioning Method: Beidou + GPS

Cold Start Time: Average 32 seconds

Hot Start Time: Average 1 second

Sensitivity (Tracking): -162 dBm

Location Antenna: Built-in

External Interface

Oil/Power Cutoff: Can be connected to an external relay

ACC Detection: One ACC detection port

SOS Button: Can connect an external SOS button

Appearance

Dimensions: 79mm x 33mm x 16mm for 4G GPS tracker manufacturer

Casing Material: ABS Plastic

Main Unit Weight: 40g

SOINGPS is a professional 4G vehicle GPS tracker manufacturer dedicated to reliable and intelligent vehicle tracking solutions. Our 4G vehicle tracker supports GPS, Beidou, AGPS, and LBS

positioning for precise monitoring across networks. With features such as remote oil and power cut-off, vibration and overspeed alarms, and wide voltage compatibility, it ensures safe and

efficient fleet management. Suitable for cars, trucks, and electric vehicles, it provides accurate data and long-term stability. Contact us today to customize your 4G GPS tracking solution for

your business.
